Located in the original 1950’s Princess Elizabeth Wing of the OSMH facility, the existing Neonatal Intensive Care Unit required significant expansion and upgrades to address life safety and functionality requirements. The primary design challenge was to establish program and layout priorities to address operational requirements within the existing space constraints.

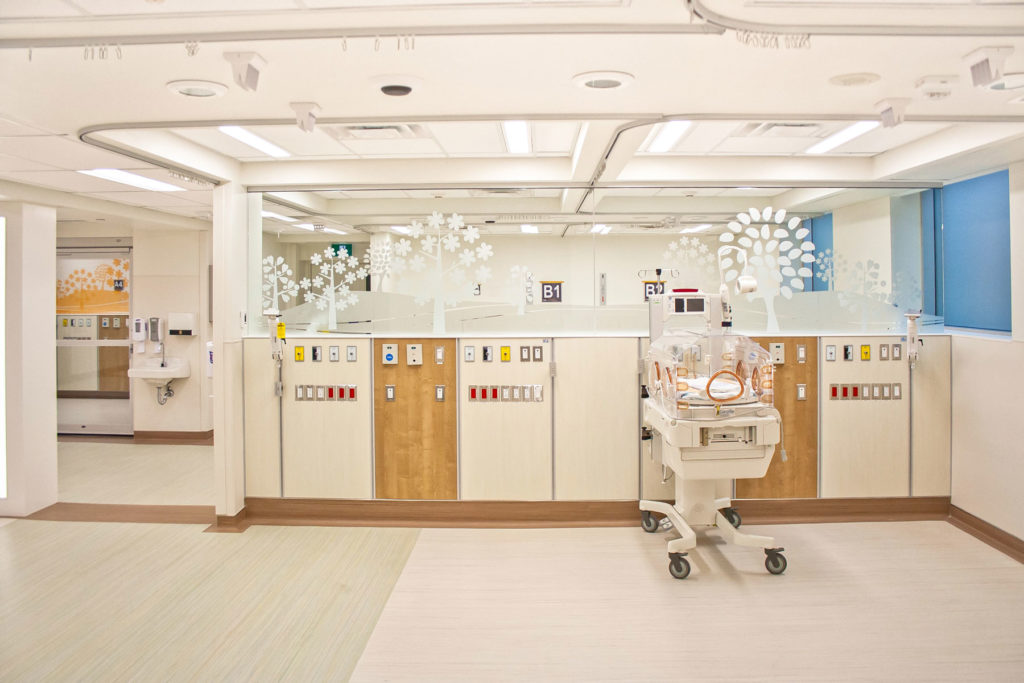

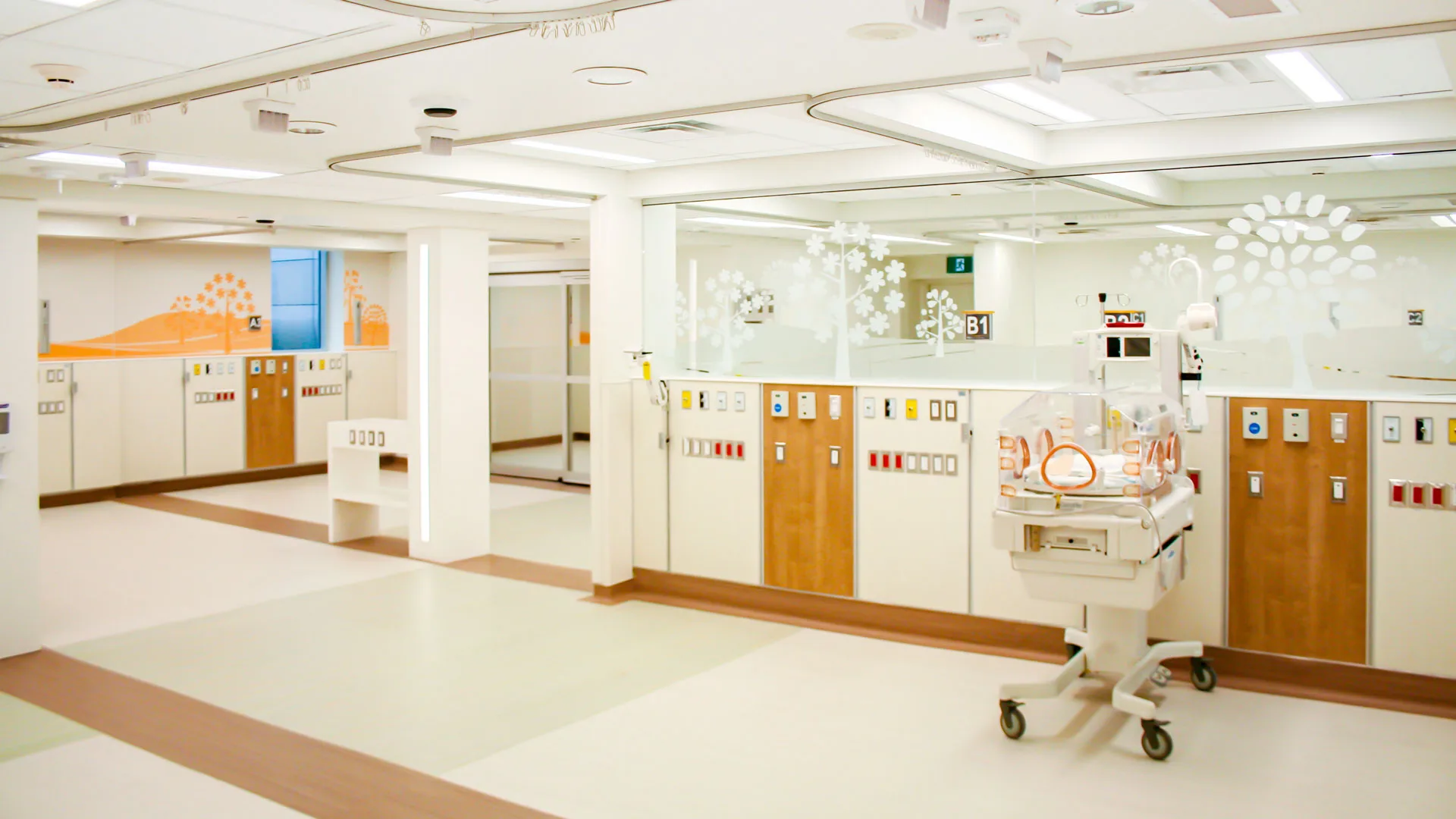

Working closely with the end users, numerous layout options were tested and specific details of the full operational requirements were reviewed to establish critical priorities within the unit. The final unit configuration involved twelve bassinettes, including a segregation room, configured in an open 3 pod solution. Two docking stations for Workstations On Wheels were incorporated rather than the traditional central team station in order to provide flexibility and space efficiency. In order to achieve the open floor plan, a load bearing masonry wall was removed and new steel columns added in strategic locations to maintain line of sight for all bassinets.
- Location
- Orillia, ON
- Completion Status
- 2016
- Client
- Orillia Soldiers Memorial Hospital
- Surface Size
- 2,500 sf
- Key Personnel
- Richard Shaw
- Project Types
- Healthcare
The mechanical and electrical systems and services were upgraded to meet current standards. The coffered ceiling design provides acoustic sound dampening for the space in conjunction with acoustic tile and flooring. The interior design theme echoes a natural setting with allusions to meadows and fields, intended to provide a serene and comfortable environment for the parents and families.
